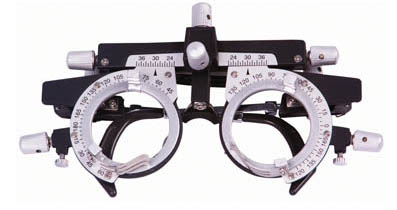

Code : GI - 025 - 01
PD adjustable range (10 specification) : 52mm、54mm、56mm、58mm、60mm、62mm、64mm、66mm、68mm、70mm.
Axial calibration on each diasc : 165°～0°～180°～25°axis graduation line runs counter clockwise along axis graduaion line of lens frame, with interval of graduation line being 5°
Degree that front lens rotates aroun optic axis inside lens frame : 360° Range of left or right lens frame leg,s length adjustment:90mm～99mm ，length of specification of trial frame increase 1mm in turn.
| Dimensions(LXWXH) | 270X185X50mm |
| Weight | 0.1kg |
Code : GI - 025 - 02
PD adjustable range (10 specification) : 52mm、54mm、56mm、58mm、60mm、62mm、64mm、66mm、68mm、70mm.
Axial calibration on each diasc : 165°～0°～180°～25°axis graduation line runs counter clockwise along axis graduaion line of lens frame,with interval of graduation line being 5°
Degree that front lens rotates aroun optic axis inside lens frame : 360°Range of left or right lens frame leg,s length adjustment:90mm～99mm ，length of specification of trial frame increase 1mm in turn.
| Dimensions(LXWXH) | 270X185X50mm |
| Weight | 0.1kg |
