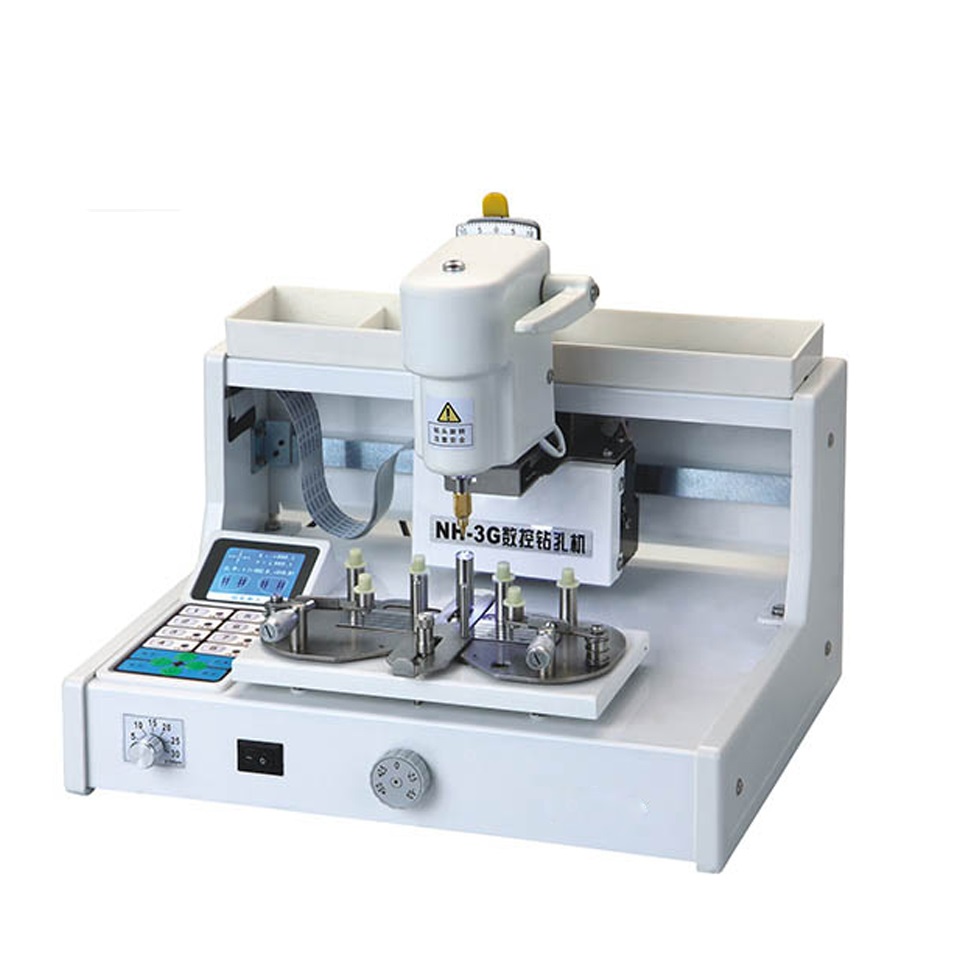

Digital Drilling Machine


  • The operation procedures are highly intelligent and totally digital.
  • Compared to the hole position of the pattern lenses, it has higher process accuracy whose process deviation is less than 0.075mm in both X-axis and Y-axis.
  • It has auto position clamping equipment which allows remaining the same process accuracy after the change of clamps.
  • The screen shows the drill position and coordinates data, and gives guidance to the operation.
  • The hole position memory function allows to process the set hole positions continuously.
  • There're two measure modes to choose which are original pattern measure mode and frame
  • Position measure mode.

  • It has mirroring mode in the process.
  • The head can automatically reposition if it's removed from its position accidently.
  • The instrument drills automatically in a set order,and can be corrected by pressing the
  • number button if any hole is missed by wrong operations.
